Savantec 6.35-10.31mm High Speed Steel One Pass Deburring Tool For Inner Hole

Savantec 6.35-10.31mm High Speed Steel One Pass Deburring Tool For Inner Hole

Nombre de la marca:

Savantec

Número de modelo:

Sv-bo

Contacta con nosotros
Solicitar una cita
Detalles del producto
Nombre del producto:
Herramientas de desacuerdo integral
Marca:
Savantec
Color:
Plata
Material:
Acero de alta velocidad
Método de embalaje:
Caja de plástico
Origen:
China (continente)
Revestimiento:
No (se puede agregar)
Personalizar:
Puerto de despacho:
Llevar a la fuerza
Condiciones de pago y envío
Cantidad de orden mínima
10
Condiciones de pago
T/T
PRODUCTOS RELACIONADOS
Contacta con nosotros
Contacta ahora
Descripción del producto

Savantec 6.35-10.31 high-speed steel one pass deburring Single edged deburring tool for inner hole





product description



Deburring holes is usually a costly and time-consuming operation. The back sides of holes are particularly difficult, as they are frequently inaccessible with conventional deburring tools.



The BO deburring tool, often referred to as a burr removal tool or deburring equipment, is a specialized tool used to remove burrs from the surface of workpieces after machining operations. Burrs are small protrusions or sharp edges that can form on metal parts during cutting, drilling, grinding, or other machining processes.



Savantec deburring Tool Products offers you a better way to get rid of those troublesome burrs. Savantec deburring tools remove burrs on the front, back, or both sides of drilled holes in one pass. . . fast, easy, and economical solutions for your hole-deburring problems!



The burr off tool comes in both inches and metric sizes,ranging from holes as small as 0.8mm to 5.56mm. Savantec Tools have both single and double edges deburring tools, as well as titanium nitride coating and custom measurements as per request. Contact Savantec Tools for competitive pricing. In portable power tools – no need for replicated fixtures, and no special operator skills are required.




product specification



Standard tool   Unit:mm
ORDER CODE DRILL HOLE SHANK D SHAND d OAL DIM.A DIM.B DIM.D Recommand REV
SV-BO-0.8 0.8-0.9 3 0.7 45 1 1.5 1.05 1800
SV-BO-0.9 0.9-1.0 3 0.8 45 1 1.5 1.2 1800
SV-BO-1.0 1.0-1.1 3 0.9 45 1 1.5 1.35 1800
SV-BO-1.1 1.1-1.2 3 1 45 1 1.5 1.5 1800
SV-BO-1.2 1.2-1.3 3 1.1 45 1 1.5 1.65 1800
SV-BO-1.3 1.3-1.4 3 1.2 45 1 1.5 1.8 1800
SV-BO-1.4 1.4-1.5 3 1.3 45 1 1.5 1.95 1800
SV-BO-1.5 1.5-1.6 3 1.4 50 2 2.5 2.1 1500
SV-BO-1.6 1.6-1.7 3 1.5 50 2 2.5 2.25 1500
SV-BO-1.7 1.7-1.8 3 1.6 50 2 2.5 2.4 1500
SV-BO-1.8 1.8-1.9 3 1.7 60 2 2.5 2.55 1500
SV-BO-1.9 1.9-2.0 3 1.8 60 2 2.5 2.65 1500
SV-BO-2 2.0-2.2 3 1.9 60 2 2.5 2.8 1500
SV-BO-4 2.2-2.4 3 2 80 2 2.5 3.15 1500
SV-BO-5 2.4-2.6 3 2.1 80 2 2.5 3.45 1500
SV-BO-6 2.6-2.8 3 2.2 80 2 2.5 3.7 1500
SV-BO-7 2.8-3.18 2.75   101.6 3.18 4.45 4.00 1200
SV-BO-8 3.18-3.55 3.15   101.6 3.18 4.45 4.34 1200
SV-BO-9 3.55-3.96 3.58   101.6 3.18 4.45 4.74 1200
SV-BO-10 3.96-4.36 3.9   101.6 3.18 4.45 5.54 1200
SV-BO-11 4.36-4.74 4.34   101.6 3.18 4.45 5.94 1200
SV-BO-12 4.74-5.15 4.72   101.6 3.18 6.22 6.35 1200
SV-BO-13 5.15-5.56 5.13   101.6 3.18 6.22 6.78 1200
SV-BO-14 5.56-5.94 5.54   101.6 6.48 6.22 7.92 800-1000
SV-BO-15 5.94-6.35 5.92   101.6 6.48 6.22 8.33 800-1000
SV-BO-16 6.35-6.75 6.32   101.6 6.48 6.22 8.71 800-1000
SV-BO-17 6.75-7.13 6.73   101.6 6.48 6.22 9.12 800-1000
SV-BO-18 7.13-7.54 7.11   101.6 6.48 6.22 9.53 800-1000
SV-BO-19 7.54-7.95 7.52   101.6 6.48 6.22 9.91 800-1000
SV-BO-20 7.95-8.33 7.92   101.6 7.24 6.48 10.31 800-1000
SV-BO-21 8.33-8.71 8.31   101.6 7.24 6.48 10.72 800-1000
SV-BO-22 8.71-9.11 8.69   101.6 7.24 6.48 11.1 800-1000
SV-BO-23 9.11-9.52 9.09   101.6 7.24 6.48 11.51 800-1000
SV-BO-24 9.52-9.90 9.5   112.7 8 6.48 12.7 800-1000
SV-BO-25 9.90-10.31 9.88   112.7 8 6.48 13.08 600

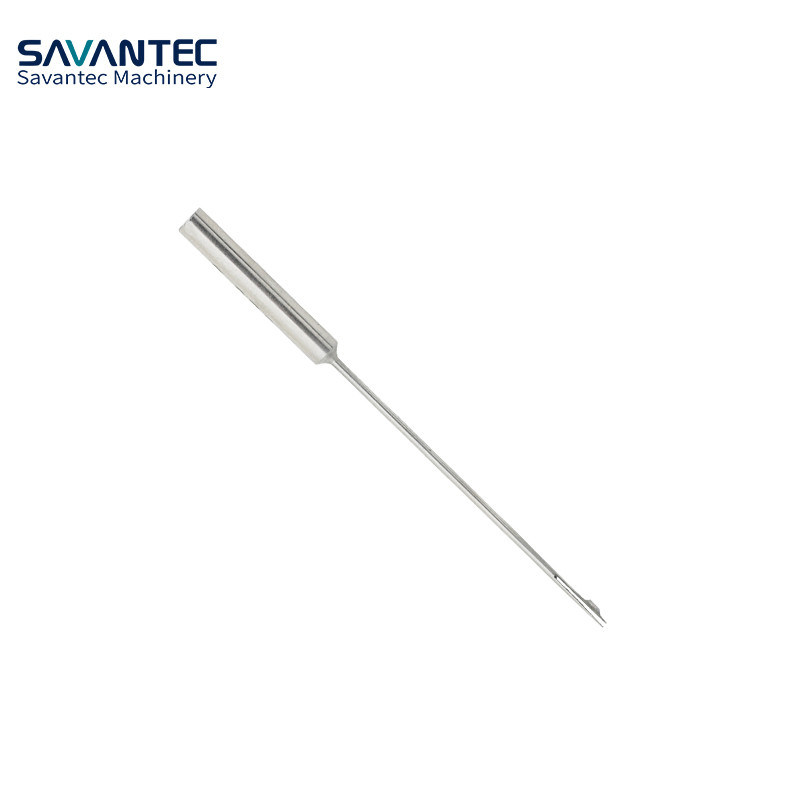

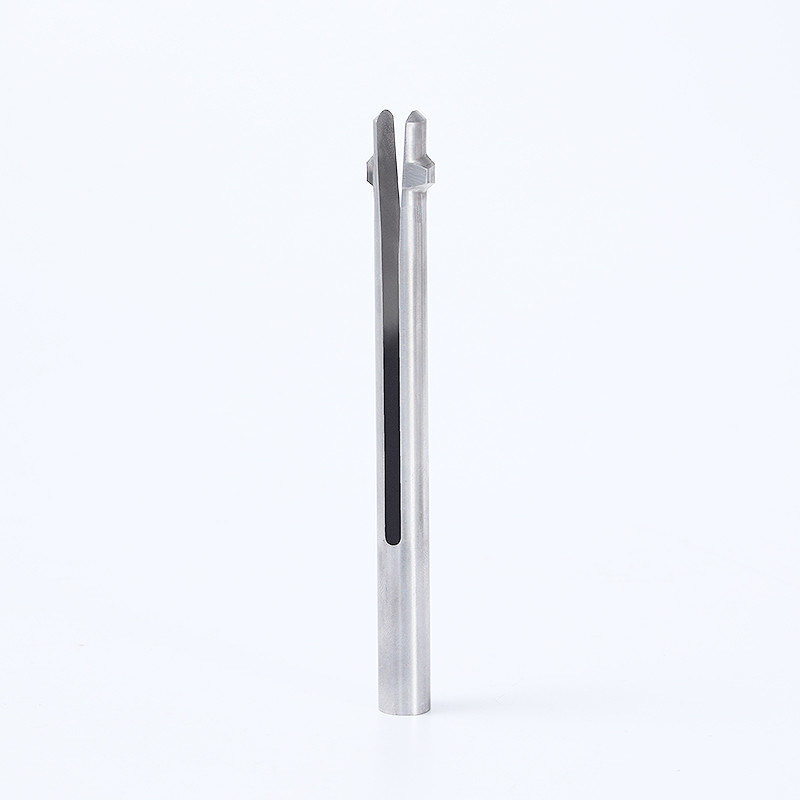

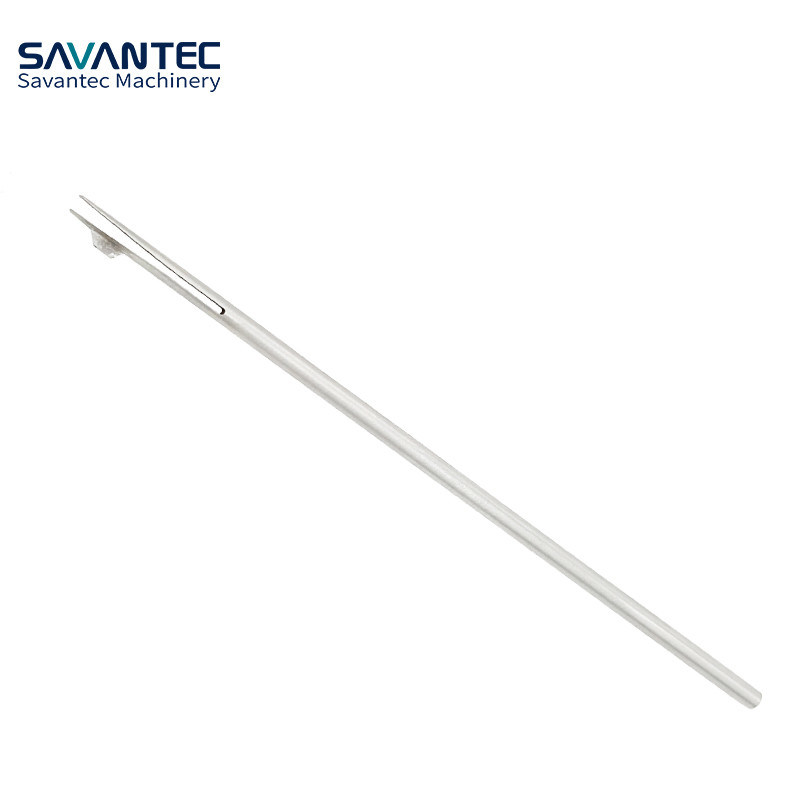

product image



Savantec 6.35-10.31mm High Speed Steel One Pass Deburring Tool For Inner Hole 0
